CircularQueue Buffer

---

CircularQueue Buffer - 고정된 사이즈의 큐

---

Concept

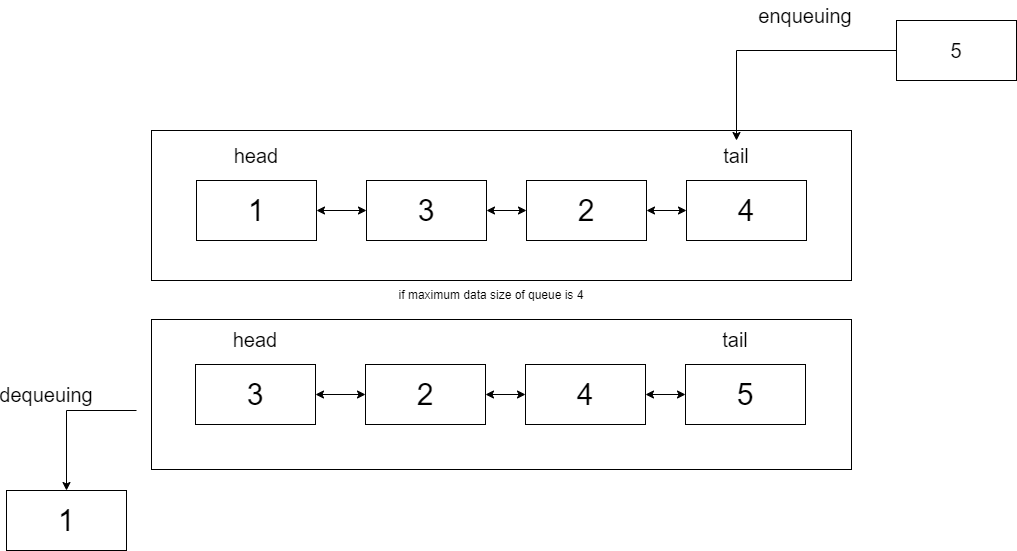

CircularQueue Buffer is fixed size Queue which seems like FIFO queue. The difference between FIFO queue and CircularQueue Buffer is that unlike FIFO queue, CircularQueue Buffer shifts data when CircularQueue Buffer's size is maximum.
CircularQueue Buffer is developed by using this concept via circular queue concept.
Wiki : Circular Queue

Three types of CircularQueue Buffer

1. QueueBufferArray

• Concept

QueueBufferArray use array to implement CircularQueueBuffer. It is shifted when size is full.

• Code

template <typename T, int bufferSize>
class QueueBufferArray
{
public:
    QueueBufferArray()
    {
        capacity_ = bufferSize;
        size_=head_ = tail_ = 0;
    }
    ~QueueBufferArray() = default;
    QueueBufferArray(const T& data)
    {
        capacity_ = bufferSize;
        size_=head_ = tail_ = 0;

        for (int i = 0; i < bufferSize; i++)
        {
            enqueue(data);
        }
    }
    void enqueue(const T& data)
    {
        // if current size is maximum, shift all element and insert new elements
        if (size_ == capacity_)
        {
            shiftBuffer();
            tail_--;
            buffer_[tail_++] = data;
            return;
        }

        buffer_[tail_++] = data;
        size_++;
    }
    T operator[](const int idx)const
    {
        return buffer_[idx];
    }
    void printAll()
    {
        for (int i = 0; i < tail_; i++)
        {
            cout << buffer_[i] << " ";
        }cout << endl;
    }
private:
    T buffer_[bufferSize + 1];

    int capacity_;
    int size_;
    int head_;
    int tail_;
    void shiftBuffer()
    {
        for (int i = 0; i < size_ - 1; i++)
        {
            buffer_[i] = buffer_[i + 1];
        }
    }
};

2. QueueBufferLinkedList

• Concept

QueueBufferLinkedList use implements QueueBufferLinkedList by using linkedlist.
Unlike other linkedlist, it use memory pool. (Node)

• Code

#pragma once
#include <iostream>
using namespace std;
template <typename T>
struct Node
{

    Node* prev_;
    Node* next_;
    T data_;
    Node()
    {
        prev_ = nullptr;
        next_ = nullptr;
        data_={};
    }
    ~Node() = default;
    void alloc(Node* prev, Node* next, const T&data)
    {
        data_ = data;
        prev_ = prev;
        next_ = next;
        if (prev_)prev_->next_ = this;
        if (next_)next_->prev_ = this;

        return;
    }
    void pop()
    {
        if (prev_)prev_->next_ = next_;

        if (next_)next_->prev_ = prev_;

        return;
    }


};

template <typename T, int N>
class  QueueBufferLinkedList
{

public:
    QueueBufferLinkedList()
    {
        capacity_ = N;
        bcnt_ = 0;
        size_ = 0;
        head_.next_ = &tail_;
        tail_.prev_ = &head_;

    }
    QueueBufferLinkedList(const T& initData)
    {
        capacity_ = N;
        bcnt_ = 0;
        size_ = 0;
        head_.next_ = &tail_;
        tail_.prev_ = &head_;

        for (int i = 0; i < N; i++)
        {
            enqueue(initData);
        }
    }
    void enqueue(const T& data)
    {

        if (size_ == capacity_)
        {
            Node <T>* ptr = head_.next_;
            ptr->pop();
            ptr->alloc(tail_.prev_, &tail_, data);
            return;
        }
        else
        {
            buf_[bcnt_++].alloc(tail_.prev_, &tail_, data);
            size_++;
        }

        return;
    }
    T operator[](const int idx)const
    {
        if (idx >= 0)
        {
            Node<T>* ptr = head_.next_;
            for (int i = 0; i < idx; i++)
            {
                ptr = ptr->next_;
            }
            return ptr->data_;
        }
        else
        {
            Node<T>* ptr = tail_.prev_;
            for (int i = -1; i >idx; i--)
            {
                ptr = ptr->prev_;
            }
            return ptr->data_;
        }
    }
    void printAll()
    {
        Node<T>* ptr = (&head_)->next_;


        while (ptr != &tail_)
        {
            cout << ptr->data_ << " ";
            ptr = ptr->next_;
        }cout << endl;
    }
private:
    Node<T> buf_[N + 1];// Memory pool.
    int capacity_;
    int size_;
    int bcnt_;
    Node<T>head_;
    Node<T>tail_;
    bool IsEmpty() const
    {
        return head_.next_ == &tail_;
    }
};

• Memory Pool

Wikipedia link

Since CircularQueueBuffer is fixed-size , we don't need memory allocation every time.
So use memory pool to achive memory optimization. Node is memory pool.

template <typename T> // by using template, Node can be used in all data types.
struct Node
{

    Node* prev_;
    Node* next_;
    T data_;
    Node()
    {
        prev_ = nullptr;
        next_ = nullptr;
        data_={};
    }
    ~Node() = default;
    void alloc(Node* prev, Node* next, const T&data) // memory allocation
    {
        data_ = data;
        prev_ = prev;
        next_ = next;
        if (prev_)prev_->next_ = this;
        if (next_)next_->prev_ = this;

        return;
    }
    void pop() // delete memory (free memory)
    {
        if (prev_)prev_->next_ = next_;

        if (next_)next_->prev_ = prev_;

        return;
    }


};

SimpleBuffer

• Concept

SimpleBuffer use array to implement CirQualrQueueBuffer. The difference between QueueBufferArray is that SimpleBuffer use modular operation. By using this, there is no shifting like QueueBufferArray

• Code

#pragma once
#include <iostream>
using namespace std;

template<typename T, int bufferSize>
class SimpleBuffer
{
public:

    SimpleBuffer()
    {
        head_ = -1;
        tail_ = -1;
        size_ = 0;
        bufferSize_ = bufferSize;
    }
    ~SimpleBuffer() = default;
    SimpleBuffer(const T& initdata)
    {
        head_ = -1;
        tail_ = -1;
        size_ = 0;
        bufferSize_ = bufferSize;
        for (int i = 0; i < bufferSize_; i++)
        {
            enqueue(initdata);
        }
    }
    T front() const
    {
        if (isEmpty()) { return T(); }

        return buffer[head_];
    }
    T tail() const
    {
        if (isEmpty()) { return T(); }


        return buffer[tail_];
    }
    void enqueue(const T& data)
    {
        if (IsFull())
        {
            dequeue();
            enqueue(data);
            return;
        }
        else
        {
            if (head_ == -1) { head_ = 0; }

            tail_ = (tail_ + 1) % (bufferSize_);
            buffer[tail_] = data;
            size_++;
        }
    }
    T operator[](const int idx) const // don't want to return l-value. Queue's data only changed by enqueue and dequeue
    {

        if (idx >= 0)
        {
            return buffer[(head_ + idx) % bufferSize_];
        }
        else
        {
            return buffer[(head_ + size_ + idx) % bufferSize_];
        }
    }

    void dequeue()
    {
        if (isEmpty())
        {
            return;
        }
        else
        {
            if (head_ == tail_)
            {
                head_ = -1, tail_ = -1;
            }
            else
            {
                head_ = (head_ + 1) % bufferSize_;
            }
        }

        size_--;

    }
    void printAll()
    {
        int i = head_;
        if (isEmpty())
        {

            return;
        }


        int idx = head_;

        for (idx = head_; idx != tail_; idx = (idx + 1) % bufferSize_)
        {
            cout << buffer[idx] << " ";
        } cout << buffer[idx] << endl;


        return;
    }
private:

    int head_;
    int tail_;
    int size_;
    int bufferSize_;
    T buffer[bufferSize] = {};
    bool IsFull() const
    {

        if (head_ == 0 && tail_ == (bufferSize_ - 1))
        {
            return true;
        }
        if (head_ == tail_ + 1)
        {
            return true;
        }
        return false;

    }
    bool isEmpty() const
    {
        if (head_ == -1) { return true; }

        else { return false; }
    }

};

Reference

1. Reference Github
2. Reference Site
